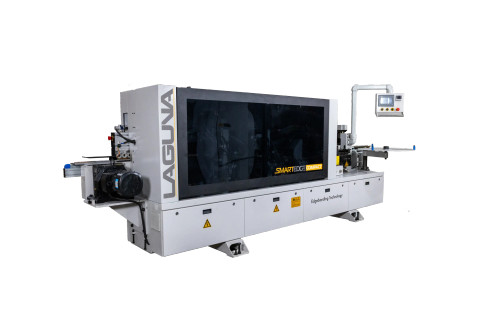

The Bandit 5 is the flagship model of our Edgebander line. With the addition of Pre Milling and Corner Rounding, this machine has all the features you've come to expect from a Laguna Edgebander. The Bandit 5 can apply a perfect edge finish for you every time.
Features
- Pre-Mill
- Corner Rounding
- Dual Motor End Time
- Top & Bottom Trim
- Buffing & Scraping
Feed Speed: 15-23m/min(49-76ft/min)
Edge Thickness: 0.4-3mm (1/64in – 1/8in)
Panel Thickness: 10-60mm
Panel Length: >150mm
Working Pressure: 0.6mpa
Power Requirements: 220V-3PH-60HZ
Total Power: 16.45kW (22HP)
Panel Width: >60mm
Dust Port Outer Diameter: 98mm (3.85in) x 5
CFM Requirement: 2000 CFM
Minimum Panel Size (L x W): 300mm x 60mm (11-13/16in x 2-3/8in) /
150mm x 150mm (5-29/32in x 5-29/32in)
