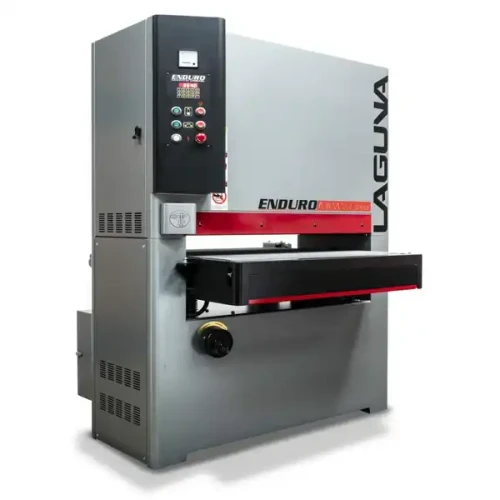

The Enduro Series Offering metal deburring, sanding, and texturing, the Pro Line of Metal Wide Belt Sanders from LAGUNA gives a new level of production perfection. With a 30 hp motor, 51″ wide work table, an automatic thickness gauge system, or manual table elevation control, you can get the exact finish you need.
Features
- 2 Sanding Belts Controlled By One Main Motor
- 30hp Main Motor / 2hp Conveyor Motor
- Belt Size: 51″ x 75″
- Digital Control Panel With Logic
- Variable 12 – 60 feet/min Conveyor Speed
- Sanding Drum Diameter: 8″
- Dust port size: 5” x 5
Specifications
- Main Motor: 30 HP
- Variable Feed Speed: 2 HP
- Table Lifting Motor: ¼ HP
- Voltage: 220V, 3 Phase, 60hz: YES
- Programmable Logic Control: YES (Digital Readout)
- Automatic Thickness Control: YES (Thicknessor)
- Max Sanding Height: 6”
- Min Sanding Height: 1/8”
- Max Sanding Width: 51”
- Sanding Belt Size: 75”
- Diameter of Sanding Drum: 8”
- Length of Sanding Drum: 52.1”
- Sanding Drum RPM: 1720
- Conveyor Speed: 14-60ft/min
- Dust Port Size: 5”
- Number of Dust Ports: 5
- Foot Print: 68 x 20 1/2"
- Conveyor Height at Lowest Setting: 31.9" (Table Height 37.4")
- Cabinet Steel: YES
- Operating Air Pressure: 60 PSI
- Sanding Belt Oscillation: YES
- Sanding Belt Motor Break: YES
- Fully CSA: YES
- Net Weight: 2976 lbs
- Ship Weight: 3527 lbs
