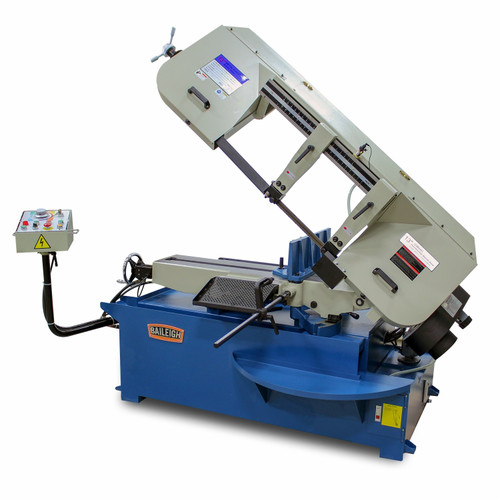

Baileigh Automatic Bandsaw Bs-20A

Baileigh Industrial

$46,999.00
(No reviews yet) Write a Review
SKU:
BA9-1001260
UPC:
731325396416
Adding to cart… The item has been added

Need to increase production rates on large jobs? The BS-20A automatic feed bandsaw's hydraulic system can automatically clamp, cut, and feed bundles. The heavy steel frame on this 3 phase bandsaw maintains accuracy.


  • Cuts up to 13” round and 13” x 18” rectangle at 90°.
  • 89 to 256 fpm variable speed, so you can fine-tune for your material.
  • Accepts a standard 1” blade (included) for speed and precision.
  • Available in 220-volt or 440-volt 3-phase models (440-volt is a special order).
  • Miters up to 45° with a degree indicator to show your angle.
  • Powerful 5 hp motor runs the low-pressure industrial-grade hydraulic system.
  • Automatic system, with a hydraulic vise and automatic return, saves time and smoothly manages the whole cutting process, including transitions.
  • Digital encoders feed the material between cuts for repeatability.
  • Hydraulic large-capacity bundling system clamps the material tight to ensure a consistent cut across all of the pieces.
  • 2-speed blade descent allows for faster cycle times.
  • Delta® touchscreen programmer is easy to use, so you can get to work right away.
  • Programmer can run in manual or automatic mode.
  • Infeed and outfeed table can handle 5,000 lbs. of material.
  • Patented blade tension device makes it simple to set the correct tension. You can just line up the arrow within the green gauge.
  • Electro-welded steel framework reduces vibrations and gives this automatic horizontal band saw the structural strength to tackle large capacities accurately.
  • In case a blade breaks, automatic blade shut-off protects your safety.
  • Variable-speed metal chip auger and coolant system keep the saw clean and make blades last longer.
  • Bright halogen work light lets you clearly see what the machine’s doing.
  • Most parts are in stock, so you don’t have to wait long to get replacements.
  • Covered by a 1-year parts warranty.
  • You can count on lifetime technical support by phone from a team of reps with hands-on machine experience.


Baileigh also offers a Single Phase Bandsaw.

Read Less

SPECIFICATIONS

Item Number BS-20A
Country of Manufacture Taiwan
Return Hydraulic
Miter Adjustment Swivel Head
Miter Angle 0 – 45°
Included Accesories Included Accesories
Capacity Rectangular 90 x 45 x 45L 13" x 18" x 13" x 11"
Capacity Round 90° x 45° 13" x 11"
Chip Removal Hydraulic Auger
Capacity Square 90° x 45° 13" x 11"
Table Height 32.3"
Blade Guide Carbide x Roller
Blade Motor 5 hp
Blade Size 1" x .035" x 162.59"
Blade Speed (fpm) 89 – 256 (Variable Speed)
Material Clamping Bundling Hydraulic
Material Feed Hydraulic
Descent Control Pressure Assist Hydraulic
Power 220V / 3-phase
Shipping Weight 3500lbs
Shipping Dimensions (Inches) 91x87x73

* specifications subject to change without notice.
