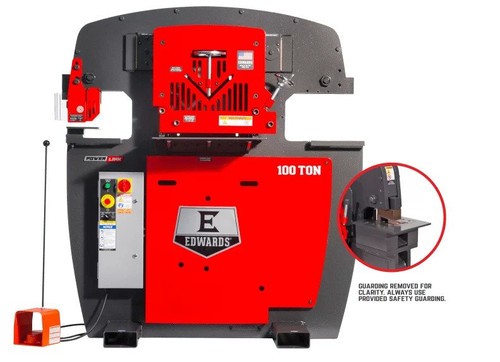

Edwards 100 Ton Ironworker 208V, 3PH, 10" Brake

Edwards

$33,879.00
(No reviews yet) Write a Review
SKU:
ED9-10203022
UPC:
731325864137
Adding to cart… The item has been added

This 100 Ton Ironworker provides optimal power and adaptability to handle any project with its 4 Workstations including a factory-stalled Coper Notcher. Compatible with 12 interchangeable Attachments and 17 Accessories to adapt the Ironworker to your needs. Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life. Punches are easily changeable, long-lasting and available from 1/8" to 4" diameters along with square, oblong, hex, metric, and custom shapes. Includes a 10" Brake with 4-Way Die allowing 1/16", 1/8", 3/16" and 1/4" material to be formed to a 90° angle. Ideal for larger fabrication shops or those jobs requiring heavier materials.

Adjustable electric stoke control
ANSI B11.5-1988(02) Compliant Guarding
Bright LED lights increases visibility
Durable, heavy-duty Made in USA steel construction
ETL Certified Controls
Flat Bar Shear blades are made of precision machined, high-quality tool steel with 4 cutting edges for extended life
Integrated Lock-out/Tag-out system with multiple location E-Stop (foot pedal & control panel) for added safety
Optimized workstation heights for improved efficiency


Stock Number ED9-10203022
Flat Bar Shear Max Capacity 1" 14
Flat Bar Shear Max Round (In) 1-1/4
Flat Bar Shear Max Square (In) 1-1/4
Flat Bar Shear Work Height (In.) 37
Hydraulic Pump (GPM) 10-1/2
Model Number 10203022
Motor Amps 22
Motor (HP) 7.5 HP 3 ~ 208V
Motor Speed (RPM) 1765
Prop 65 None
Punch Max Capacity (In.) 1-16 diam. In 5/8 mild steel
Punch Open Height (In) 8-3/4
Punch Shut Height (In) 6-15/16
Punch Stroke (In.) 1-13/16
Punch Throat Depth (In.) 11
Punch Work Height (In.) 39-1/16
Rating (Tons) 100
Reservoir (Gal.) 17
Valve Pressure (PSI) 3500
Weight (Lbs.) 4650
