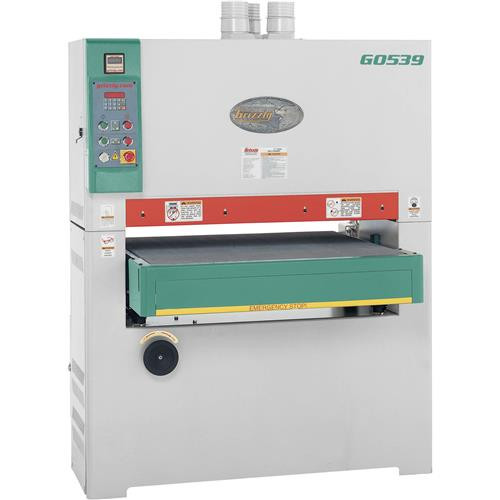

Rarely can a machine claim to cut your sanding time in half, but our Double Head Wide-Belt Sanders feature dual heads enabling them to sand to finer grits in a single pass! The first belt runs on a single drum and the rear belt runs on a platen system which allows you to adjust the sanding depth. If you are still sanding through 2 grit levels using a single head wide-belt sander you are not being the most efficient.
Made in an ISO 9001 Factory
CSA certified meeting CSA C22.2 #105-1953 and UL 987-7th standards!
Features:
- Rubber pressure rollers
- Hard rubber infeed drum
- Adjustable graphite platen
- Digital encoder depth control
- Amp/load meter
- Disc brake for emergency stop
- Variable feed speed
- Made in an ISO 9001 Factory!
Specifications:
- Sanding motor HP: 25 HP, TEFC
- Sanding motor voltage: 220V/440V*
- Sanding motor phase: 3-phase
- Sanding motor amps: 64.9A/32.5A
- Conveyor motor HP: 2 HP, TEFC
- Conveyor motor amps: 6A/3A
- Table lift motor HP: 1/4 HP, TEFC
- Table lift motor amps: 1.2A/0.6A
- Footprint: 61" x 31"
- Maximum board width: 43"
- Maximum board thickness: 6"
- Minimum board length: 14"
- Minimum board thickness: 3/16"
- Front drum surface speed: 3500 FPM
- Rear drum surface speed: 2600 FPM
- Conveyor speed: 14-60 FPM
- Sanding belt size: 43" x 60"
- Air requirement: 57 - 75 PSI, 12.3 CFM
- Overall width: 63-1/2"
- Overall height: 72-1/2" H
- Overall depth: 60-1/2"
- Dust ports: 10
- Approx. shipping weight: 3384 lbs.
*440V operation requires purchasing additional components and installation by our technicians. Please call customer service for more information.
