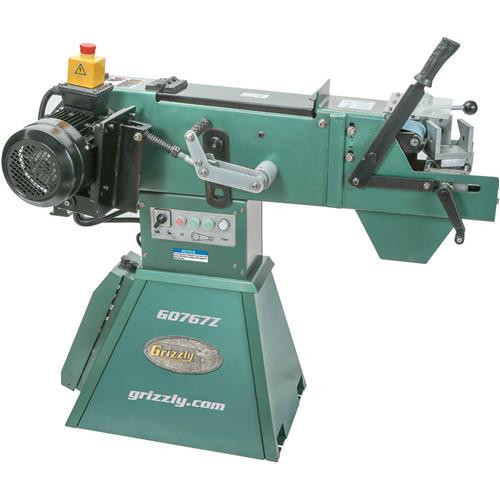

Ideally suited to metal tube fabrication, this 4" x 79" Abrasive Tube Notcher makes perfect butt joints in 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", and 3" diameter tubing. The quick-release tube vise is adjustable from 90° to 30° and can be laterally positioned for even belt wear. The large feed handle is also designed for maximum control. The quick-release belt mechanism makes belt and roller changes fast and simple. This Sander also includes a 4-1/2" x 15-3/8" platen and work stop for flat sanding operations.
Specifications:
- Motor: 3 HP, 220V, single-phase, 14.8A
- Quick-release belt system
- Quick-release tube vise
- Tube angle adjustment: 0–30°
- Sanding belt size: 4" x 78-3/4"
- Sanding belt speed: 5900 FPM
- Platen size: 4-1/2" x 15-3/8"
- Footprint: 25-1/2" L x 15-3/4" W
- Roller size: 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", and 3"
- Overall size: 31-1/2" W x 47-1/4" H x 49-1/4" D
- Approximate shipping weight: 381 lbs.
Features:
- Convenient ratcheting system for sanding belt tensioning
- Front debris-catching tray
- Rear 3" dust port
- Easy sanding belt alignment
- Top sanding belt access for deburring
- Compound self-aligning vise with side-to-side adjustment to prevent uneven belt wear
- Transparent safety guard
- Removable spark tray
- Includes 7 rollers and a toolbox with service tools
