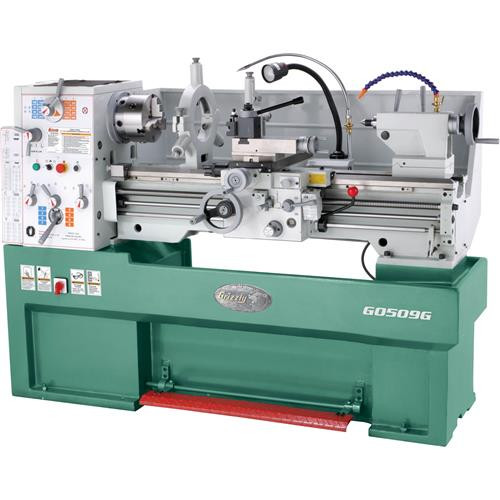

This 13" x 40" workhorse is a great addition to our line of spectacular Grizzly Gunsmithing Lathes. Supplied with an 8-speed gearhead, 2 HP motor, D1-4 spindle (with a generous 1.57" bore), flood coolant system, halogen worklight, pull-out chip tray, and foot brake—great for safety! The outboard end of the spindle has a "spider" mounting system—ideal for gunsmithing. This is one well-stocked machine! Check out the list of standard equipment below.
Features:
- 2-Axis digital readout
- Quick-change gearbox
- Convenient pull-out chip tray
- Outboard spindle spider for gunsmithing
- Quick-change tool post
- Halogen worklight
- Foot brake with motor shut-off switch
- Flame-hardened headstock gears
- Built-in coolant system
- Full-length splash guard
- D1-4 camlock spindle
- Hardened cast iron bed
Standard Equipment:
- 6" self-centering 3-jaw chuck
- 8" 4-jaw chuck with independent jaws
- 10" Faceplate
- Steady rest
- Follow rest
- Quick-change tool post (200 series)
- Toolbox with service tools
- Change gears
- MT#3 HSS dead center
- MT#3 carbide-tipped dead center
Specifications:
- Swing over bed: 13-11/16"
- Swing over gap: 18-1/2"
- Swing over cross slide: 7-11/16"
- Distance between centers: 40"
- Bed width: 7-1/16"
- Spindle bore: 1.57" (40mm)
- Spindle taper: MT#5
- Spindle nose: D1-4
- Spindle length: 16-5/16"
- Spindle length with 4-jaw chuck: 20-1/2"
- Cuts LH threads
- Cross slide travel: 5-7/8"
- Compound travel: 3-1/4"
- Tailstock taper: MT#3
- Motor: 2 HP, 220V, single-phase, 8.5A, 60 Hz, 1720 RPM
- Number of speeds: 8
- Range of speeds: 70–2000 RPM
- Overall dimensions: 74-1/2" L x 31" W x 58" H
- Approximate shipping weight: 1370 lbs.
