Description

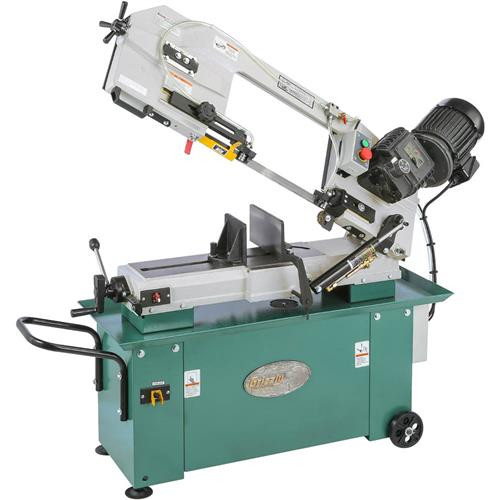

Take your metal shop to the next level with our newest in a growing line of metal-cutting bandsaws. With a 31" x 6-1/2" table, maximum cutting capacities of 9" round stock and 5" x 16" rectangular stock (at 90°), and four blade speeds from 114–377 FPM, this dynamo can handle anything you throw at it. The quick-release vise with a maximum opening of 16", 10-liter coolant system, and variable-speed hydraulic downfeed controls, give you more precision, more efficiency, and more machine!
Features
- Centralized control panel on top of saw bow
- Coolant system with 10-liter capacity
- Heavy-duty, precision-ground, cast iron table
- Hydraulic downfeed control
- Quick-positioning vise
- Sliding cutter depth gauge
- Handwheel blade tensioner
- Adjustable blade guides
- One-piece saw bow
- Easy-access to belt drive for changing blade speed
- Emergency stop button and magnetic safety switch
Specifications
- Motor: 1-1/2 HP, 220V, 1720 RPM, 11.5A
- Included blade size: 114-1/2" x 1"
- Blade speeds: 114, 196, 288, 377 FPM
- Cutting capacities:
- 90° Round 9"
- 90° Rectangular 5" x 16"
- 45° Round 9"
- 45° Rectangular 8" x 9-1/2"
- Vise jaw height: 5-1/8"
- Max. vise opening: 16"
- Table size: 31" L x 6-1/2" W
- Floor to table height: 26-1/8"
- Coolant capacity: 10 liters
- Overall size: 62-1/2" L x 22-1/2" W x 45-1/2" H
- Base footprint: 38" x 17-1/2"
- Approximate shipping weight: 638 lbs.
