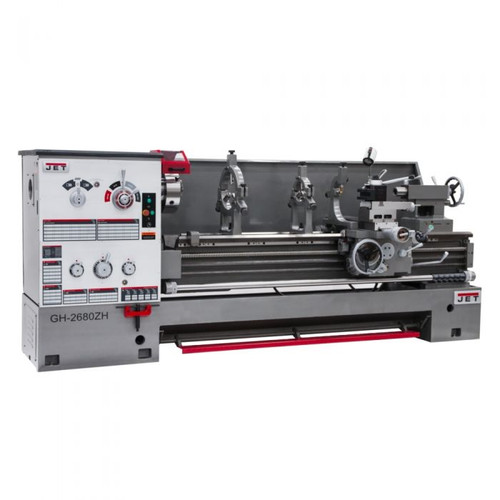

Jet 321860 GH-2680ZH, 4-1/8" Spindle Bore Geared Head Lathe

Jet Tools

$45,859.00
(No reviews yet) Write a Review
SKU:
JT321860
UPC:
662756127969
Adding to cart… The item has been added

The JET ZH-Series 4-1/8” spindle bore lathes feature a clutch operated headstock, universal gearbox, and a rapid traverse on the apron that makes the ZH-Series perfect for high-output production applications. Features you've come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty

Features:

  • 4-1/8" Spindle Bore
  • Clutch operated headstock with all headstock gears hardened and ground
  • Heavy-duty tailstock and quill
  • Rapid power traverse to cross slide and carriage
  • Full Length Splash Guard
  • 12 speeds range 36-1600 RPM
  • Headstock gearbox design allows easy selection of inch and metric threading
  • Bed ways are induction hardened and ground for durability.
  • Standard Equipment:
  • 4-Way Toolpost
  • 12" 3-Jaw Direct Mount Scroll Chuck with Jaws
  • 16" 4-Jaw Chuck
  • Face Plate
  • Steady Rest
  • Follow Rest
  • Coolant System
  • Halogen work lamp


Specifications:

  • Size 26 x 80
  • Swing Over Bed (In.) 26
  • Swing Over Cross Slide (In.) 16-1/2
  • Swing Through Gap (In.) 34
  • Length of Gap (In.) 8
  • Distance Between Centers (In.) 80
  • Spindle Bore (In.) 4-1/8
  • Spindle Mount D1-8
  • Spindle Taper with Sleeve MT-5
  • Number of Spindle Speeds 12
  • Range of Spindle Speeds (RPM) 36 - 1,600
  • Number of Longitudinal and Cross Feed Rates 65
  • Range of Longitudinal Feeds (IPR) .0023 - .0937
  • Range of Cross Feeds (IPR) .010 - .0404
  • Number of Inch Threads 48
  • Range of Inch Threads (TPI) 2-30
  • Number of Metric Threads 22
  • Range of Metric Threads 1 - 14
  • Max Tool Size (In.) 1-1/4 x 1-1/4
  • Compound Slide Travel (In.) 5-1/2
  • Cross Slide Travel (In.) 12-3/32
  • Carriage Travel (In.) 72-1/2
  • Tailstock Spindle Travel (In.) 6
  • Taper in Tailstock Spindle MT-5
  • Follow Rest Capacity (In.) 25/32 - 3-15/16
  • Steady Rest Capacity (In.) Small 25/32 - 4-29/32, Large 3-15/16 - 9-7/16
  • Width of Bed (In.) 16
  • Motor (HP) 10 HP, 230/460, 3 Ph
  • Prewired (V.) 230
  • Weight (Lbs.) 8,514
  • Overall Dimensions (L x W x H) (In.) 138 x 43 x 57
  • Style (Type) Engine - Large Spindle Bore
  • Drive Geared Head
