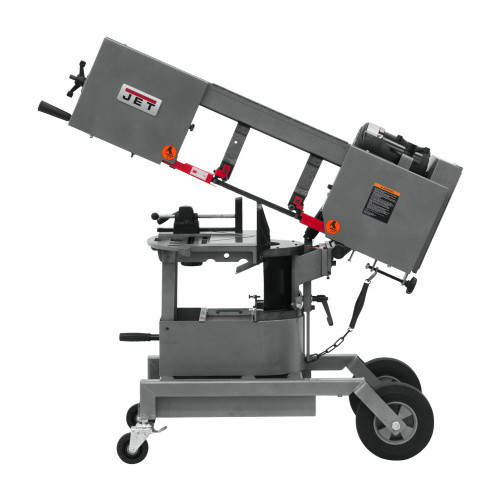

JET HVBS-8-DMW Dual Miter Portable 1HP 115V

Jet Tools

$4,109.00
(No reviews yet) Write a Review
SKU:
JT424460
UPC:
731325513509
Adding to cart… The item has been added

The JET Dual-Mitering band saw offers versatility and ease. The unique head design miters both left and right, allowing for quick angle cuts. Add to the convenience with easy conversion from a horizontal to vertical position, and wheels for moving around the shop floor.



Features:

  • Built in, self propelled blade brush prevents chip build up in blade guides
  • Head pressure controlled by a hydraulic cylinder
  • Automatic blade breakage sensor detects accidental breakage and interrupts the powe
  • Power switch with safety key prevents accidental start up
  • CSA/CUS: Following strict guidelines and electrical requirements, this JET saw is CSA/CUS certifield
  • Blade is fully guarded for Operator safety
  • Automatic shut off switch stops the sawing process
  • Hydraulic downfeed control is easily adjusted enabling feed rates to evolve with variable types of materials
  • Head dual miters both left & right for quick angle cuts
  • Protractor for fast and accurate angle cutting
  • Converts from horizontal to vertical position with ease
  • Large 16" x 10" Vertical cutting table
  • Wheels standard for ease of movement on any shop floor
  • STANDARD EQUIPEMENT
  • Blade guarding
  • Built-in protractor
  • Adjustable vise
  • Large 16"x10" Vertical cutting table
  • Removeable chip tray
  • Roller stand



Specifications:

  • Cutting Capacity (W x D) (In.) 12 x 8
  • Round at 90 Degrees (In.) 8
  • Round at 45 Degrees (In.) 6
  • Rectangle at 90 Degrees (In.) 7 x 8
  • Rectangle at 45 Degrees (In.) 7 x 5-1/2
  • Head Movement (Deg.) +/- 45
  • Blade Size (In.) 3/4 x 0.035 x 102.9
  • Blade Wheel Diameter (In.) 8-13/16
  • Blade Speed (SFPM) 64, 132, 247
  • Motor (HP) 3/4 HP, 115V, 1-Ph
  • Overall Dimensions (L x W x H) (In.) 24 x 54.7 x 43.8
  • Weight (Lbs.) 500
