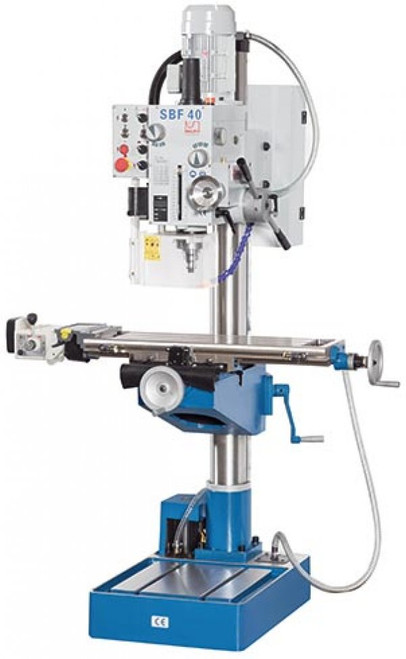

Knuth SBF 40 TV 1000 Mill Drill 101573

Knuth

$7,995.00
(No reviews yet) Write a Review
SKU:
KN101573
Adding to cart… The item has been added

Description

  • Compound sliding table with scale and adjustable stops for coordinate drilling and light milling work
  • Quiet operation with oil-bath lubricated gears for long tool life and durability
  • The milling machine's high-quality spindle bearing can withstand higher loads for the long term
  • Manual drill feed can be switched to high-precision feed via a hand-wheel
  • Controllable automatic feed with 3 gear steps
  • Adjustable height of gear head and table
  • Table guides are adjustable with high precision via taper gibs
  • Gear head swivels to both sides
  • Cutter mounts are secured by a drawbar
  • Tapping feature
  • Integrated coolant system

Standard Equipment

  • tapping unit
  • table feed TV 1000
  • draw bar
  • drill chuck
  • tool-holder bits
  • coolant system
  • operator manual

Specifications

Working Area
Drilling Capacity 2"
Tapping Capacity, Steel (ST 37) M16
Travel Z1-Axis 23"
Travel Z2-Axis 23"
Table Set Up Area 29" x 8"
Table Load Capacity 220 lbs
T-Slot Table (qty x width x spacing) 0.12" x 0.55" x 2.48"
T-Slot Foot (qty x width x spacing) 0.08" x 0.55" x 7.87"
Quill Stroke 5"
Spindle Nose-To-Table Surface Distance 24"
Spindle Nose-To-Foot Distance 46"
Throat 11"
Column Diameter 5"
Head Swivel Range ± 45 °

Travels
Travel X-Axis 20"
Travel Y-Axis 7"

Headstock
Speed Range (12) 75 - 3,200 rpm
Spindle Mount MK 4 / MT 4

Rapid Feed
Rapid Feed 24" /min

Feed
Work Feed 0 - 17" /min

Drive Capacity
Motor Rating Main Drive 2 HP
Main Drive, Continuous Load 1.48 HP
Motor Rating Coolant Pump 0.1 HP

Measures and Weights
Overall Dimensions 33" x 30" x 73"
Weight 858 lbs
