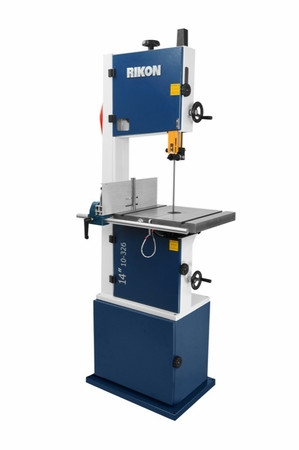

RIKON 10-326 14" Deluxe Bandsaw 1 .75 HP Motor
14" Deluxe Bandsaw #10-326 is RIKONs newest model with many Patent Pending features that professionals will enjoy - including spring-loaded tool-less blade quides, quick-adjust fence system and quick-lock trunnion table angling system, plus, a quick release blade tension lever, large adjustment handles, hinged safety blade guard with sight window, high work table height, and storage cabinet base. Its dual voltage, 1-3/4HP motor provides ample power for most every work encountered. Pre-lubricated, sealed thrust and side ball bearing guides give smooth blade support during difficult cuts. Includes 6" tall rip fence with re-saw bar. Wired for use with 3-wire 120V receptacles.
Features and Benefits:
Rugged welded steel column and frame
Balanced cast iron drive wheels
Resaw Capacity 13"
Dual blade speed ranges - 1445 / 2950 fpm
Machined cast iron table with miter gauge T slots
Quick-release blade tension system
Rack and Pinion upper guide adjustments
Dependable 1.75HP 60Hz motor
Warranty: 5 year
Specifications:
| Motor Horsepower: | 1-3/4 HP TEFC |
| Motor Amps: | 14/7 |
| Motor Volts: | 115/230V, 60Hz, 1Ph |
| Blade Speed: | 1,445/2,950 FT/MIN |
| Cutting Capacity Height: | 13 inch |
| Cutting Capacity Width: | 13-5/8 inch |
| Blade Width: | 3/16 inch Ğ 3/4 inch |
| Blade Length: | 111 inch |
| Table Size: | 21-1/2 inch x 15-3/4 inch |
| Table Left Tilt: | -7 degree |
| Table Right Tilt: | 45 degree |
| Table Miter Gauge T Slot: | (2) 3/4 inch x 3/8 inch |
| Table Height to Floor: | 40-1/2 inch |
| Table Height to Base: | 20-7/8 inch |
| Table Fence Size: | 18-3/4 inch x 1-3/4 inch x 6 inch |
| Wheel Material: | Cast Iron |
| Blade Guide Type: | Tool-less |
| Table Trunnion: | Cast Iron |
| Overall Height: | 76 inch |
| Overall Width: | 33-3/4 inch |
| Overall Depth: | 25 inch |
| Overall Base Size: | 24 inch x 17-5/8 inch |
| Dust Port: | 1@4 inch |
| Overall Net Weight: | 285 lbs. |
| Warranty: | 5 Years |
