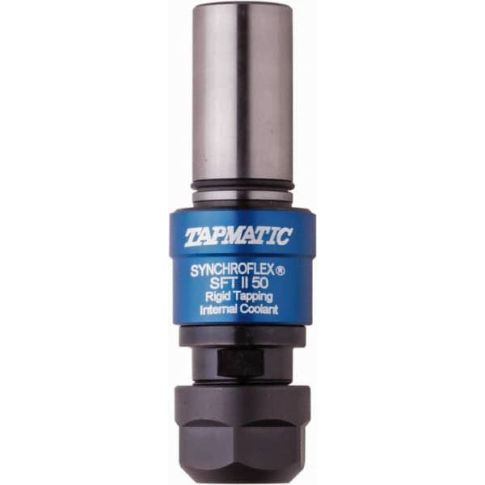

Tapmatic Tapping Chuck: 63/64" Shank Dia, Straight Shank, Rigid

Tapping Chuck: 63/64" Shank Dia, Straight Shank, Rigid M4.5 to M12 Capacity, 2.7165" Projection, Through Coolant
Product Information
: 41502520
Collet Series: ER20
Collet System: ER Tap
Compression: 0.0200 in
Maximum Collet Capacity (Decimal Inch): 0.3543
Maximum Collet Capacity (Inch): 0.3543
Maximum Collet Capacity (mm): 9.00
Maximum Pipe Tap Capacity (Inch): 1/2
Maximum Tap Capacity (Inch): 1/2
Maximum Tap Capacity (mm): M12
Minimum Collet Capacity (Decimal Inch): 0.1181
Minimum Collet Capacity (Inch): 0.1181
Minimum Collet Capacity (mm): 3.00
Minimum Pipe Tap Capacity (Inch): 1/8
Minimum Tap Capacity (Decimal Inch): 0.1772
Minimum Tap Capacity (Inch): #8
Minimum Tap Capacity (mm): M4.5
Modular Side Connection Type: Straight
Nose Diameter (Decimal Inch - 4 Decimals): 1.3385
Nose Diameter (Mm) ( - 2 Decimals): 34.00
Projection (Decimal Inch): 2.7165
Quick-Change: No
Shank Diameter (Inch): 63/64
Shank Diameter (mm): 25.00
Tapping Style: Rigid
Tension (mm): 0.51
Through Coolant: Yes
Additional Information
Hazardous Materials: No, oK to Ship Via Air
Material Safety Data Sheet (MSDS) Required: No
Country of Origin: IN, India
TAA Compliant: No
UNSPSC: 27112807
CA Restricted (Prop 65): Unknown
Package Length: 6.00
Package Width: 3.50
Package Height: 2.75
Package Weight: 1.80
Prohibited States: AK,HI,PR
